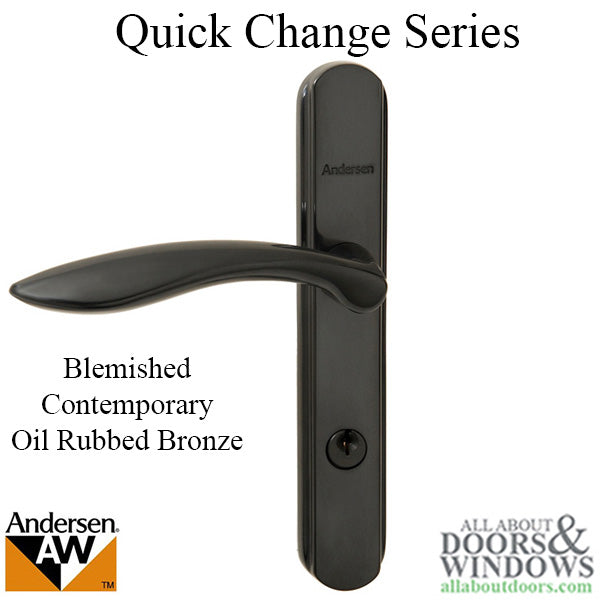

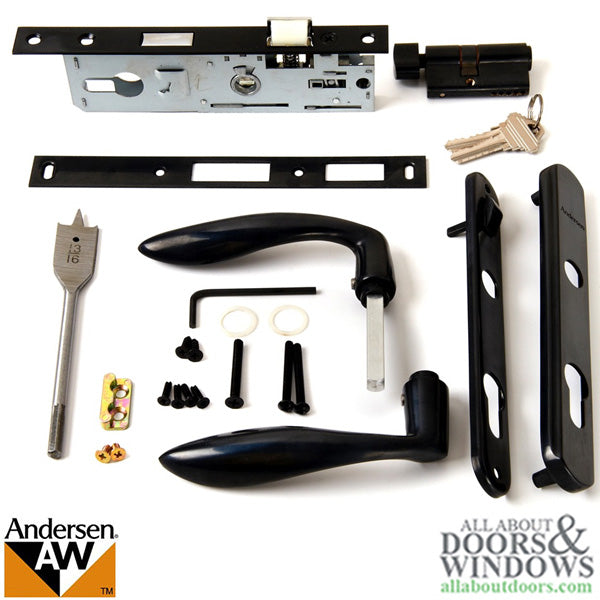

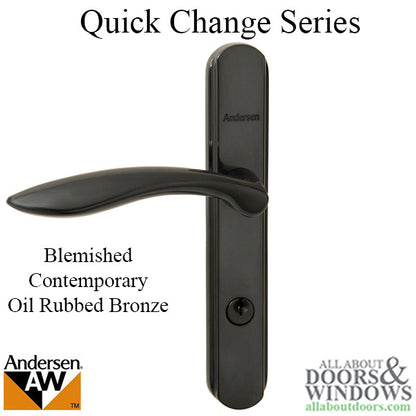

Andersen Storm Door Hardware w/ Lock Bar, Oil Rubbed Bronze - BLEMISHED

Andersen Storm Door Hardware w/ Lock Bar, Oil Rubbed Bronze - BLEMISHED.

This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.

Technical Information

• Door Thickness: 1-1/2 thick doors.
• Key Cylinder Type: Euro-Style Profile cylinder with inside thumb turn
• Key Cylinder Length: 2-1/8 off-center; 1-3/16 to screw hole from the key side and 15/16 inch from the thumb side.
• Keyway: Kwikset 5 pin Rekeyable, 2 keys ( old style had Schlage )
• Backset: 1 inch (standard is 7/8 )
• Handle Style: Contemporary
• Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
• Handle Spindle: 5/16 Square, 3-1/4 Length
• Escutcheon trim plate mounting screw holes: 6-11/16 inch
• Color / Finishes: Polished Brass, Satin Nickel, or Oil Rubbed Bronze
• SKU: 302047-ORB-BLEM

Notes

• Off-center Euro-Style Profile cylinder with a thumb turn on inside and the round hole for the outside plate.
• Euro Style Key Cylinder - offset tailpiece 1-7/32 to screw hole from the key side; 15/16 inch from thumb side.

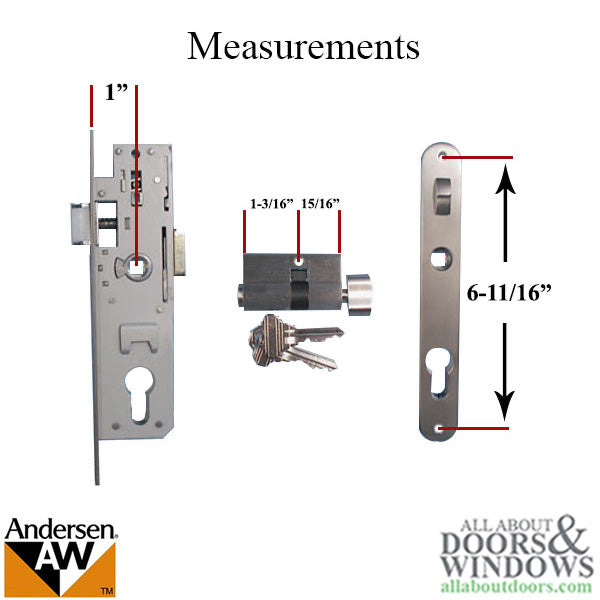

• Mortise Lock Body Measurements:
• Installation screw hole spacing (center-to-center): 6-15/16 inch
• Backset is measured from edge of the mortise lock to the center of the handle
• NOTE:
• To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
• Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
