Andersen Storm Door Hardware w/ Lock Bar, Choose Finish

Andersen Storm Door Hardware w/ Lock Bar, Choose Finish (302047)

Andersen Storm Door Hardware w/ Lock Bar, Choose Finish.

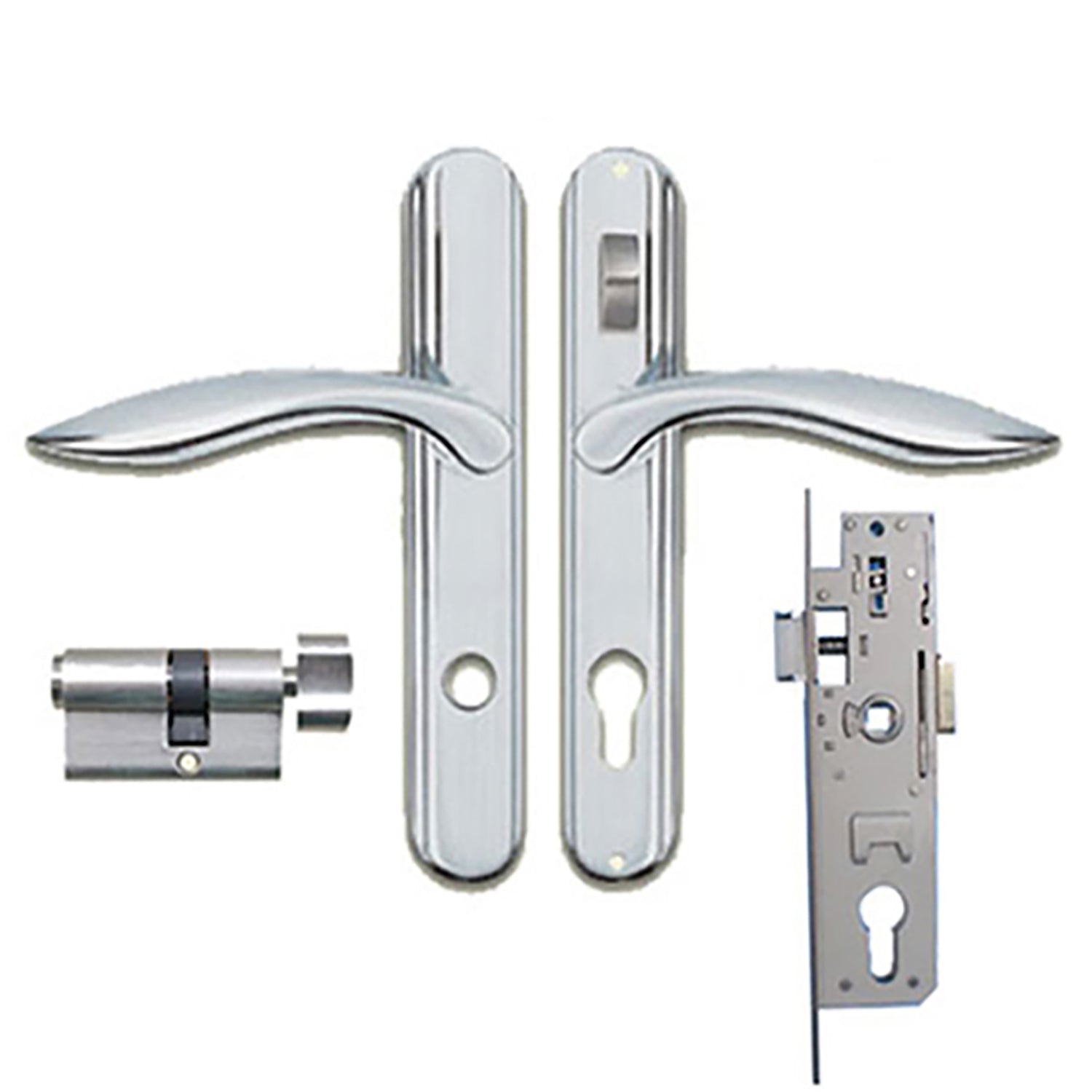

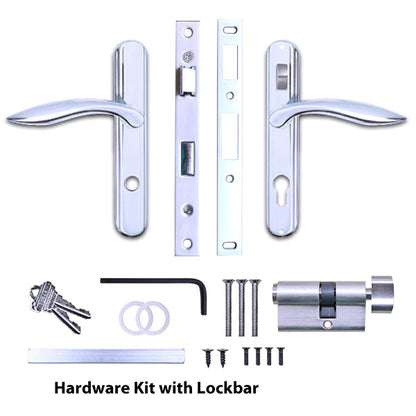

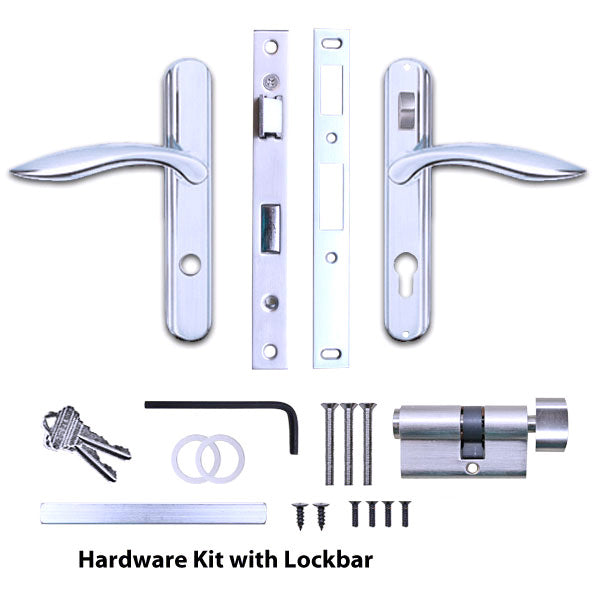

Andersen / Emco Contemporary Quick Change storm door mortise lock hardware with Lock bar.

Technical Information

• Door Thickness: 1-1/2 thick doors.
• Key Cylinder Type: Euro-Style Profile cylinder with inside thumb turn
• Key Cylinder Length: 2-1/8 off-center; 1-3/16 to screw hole from key side and 15/16 inch from thumb side.
• Keyway: Kwikset 5-pin Rekeyable, 2 keys ( old style had Schlage )
• Backset: 1 inch (standard is 7/8 )
• Handle Style: Contemporary
• Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
• Handle Spindle: 5/16 Square, 3-1/4 Length
• Escutcheon trim plate mounting screw holes: 6-11/16 inch
• Color / Finishes: Polished Brass, Satin Nickel, or Oil Rubbed Bronze
• SKU: 302047

Notes

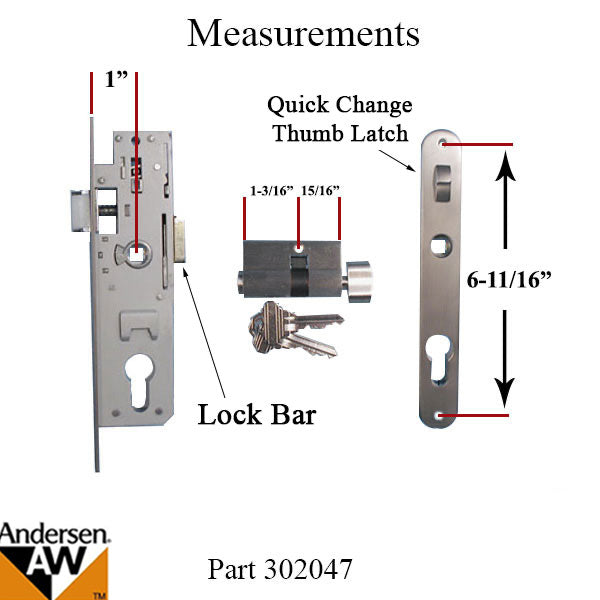

• Mortise Lock Body Measurements:
• Installation screw hole spacing (center-to-center): 6-15/16 inch
• The backset is measured from the edge of the mortise lock to the center of handle
• NOTE:
• To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
• Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
