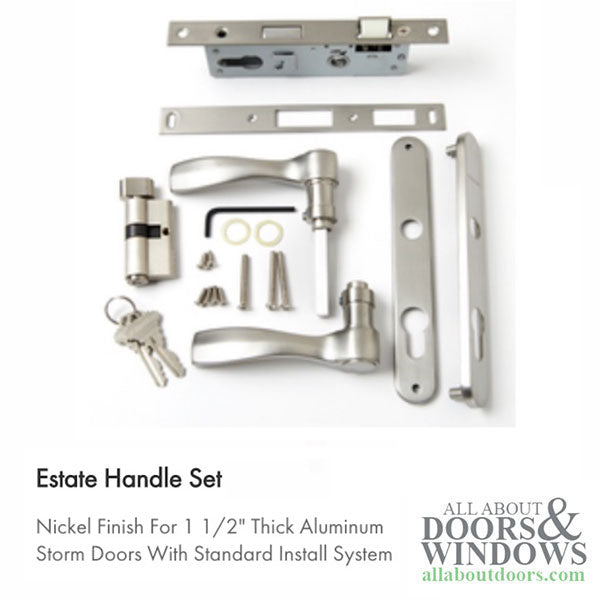

Andersen Storm Door Hardware, Estate Style - Lifetime Satin Nickel (PVD)-BLEMISHED

Andersen Storm Door Hardware, Estate Style - Lifetime Satin Nickel (PVD)-BLEMISHED (302048-LSN-BLEM)

Andersen Storm Door Hardware, Estate Style - Lifetime Satin Nickel (PVD)-BLEMISHED.

This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.

Technical Information

• Euro-Style Profile Cylinder: Off-Center
• Cylinder Type: offset tail piece
• Overall length: 2-1/8 (55mm)
• Inside Measurement: 1-1/4 (32mm) to screw hole
• Outside Measurement: 7/8 inch (22mm) to screw hole
• Keyway: Schlage 5 pin, SC1 Rekeyable, 2 keys
• Backset: 1 inch. Mortise lock body (standard is 7/8)
• Trim plate mounting screw holes: spaced 6-11/16 Inch
• Door Thickness: 1-1/2 inch

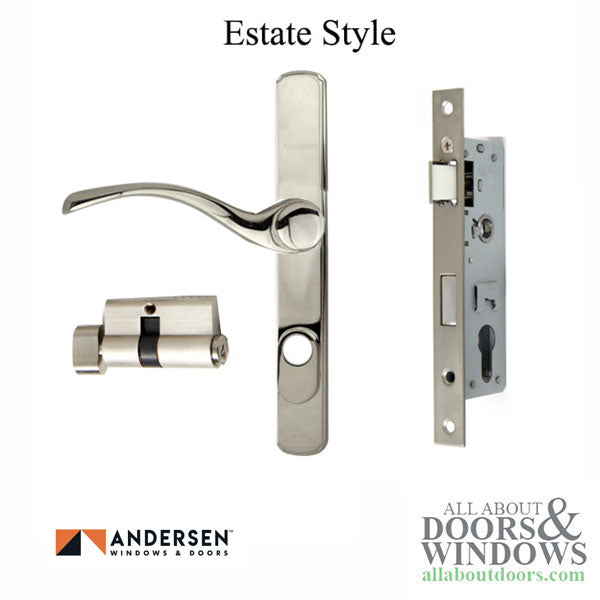

• Handle Style: Estate
• Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
• Handle Spindle: 5/16 Square, 3-1/4 Length
• SKU: 302048-LSN-BLEM

Notes

• Mortise Lock Measurements:
• Backset is measured from edge of mortise lock to center of handle
• PLEASE NOTE
• This Lock will work only on doors with these measurements,
• Style might be different from the current lock.
• Old Style had a round hole for the outside plate. (discontinued)
• To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
• Andersen / Emco Quick Change storm door mortise lock hardware with Lock bar uses 302047

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
