Andersen Storm Door Hardware, Estate Style - Choose Color

Andersen Storm Door Hardware, Estate Style - Choose Color

302048-LPB

Key details

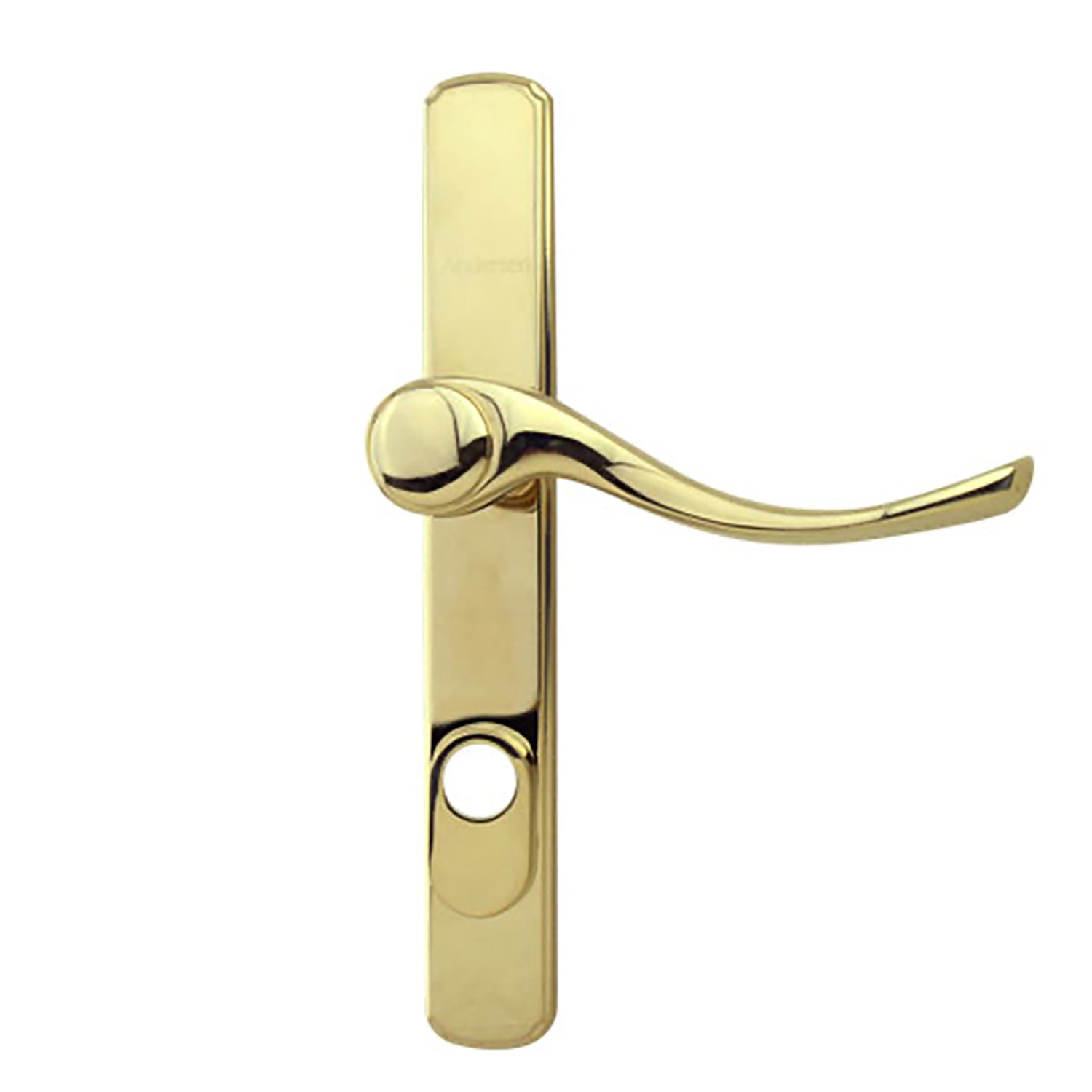

  • Finish: Lifetime Polished Brass (PVD)
  • Available to order
  • Authorized Andersen® parts · Ships from Kansas City

Not sure this fits?

Send a photo, part number, or measurements. A real person will help narrow it down.

Part Identifier Contact experts How To guides

Fit at a glance

  • Part type Andersen® replacement part
  • Typical use Commonly used on Andersen® storm doors
  • Before you order Match the part number, series, or measurements on your existing hardware when possible.
  • Authorized Genuine Andersen®-focused replacement parts from Parts and Hardware
Details

Andersen Storm Door Hardware, Estate Style - Choose Color (302048)

Andersen Storm Door Hardware, Estate Style - Choose Color.

This product is discontinued and limited to existing inventory.

Technical Information

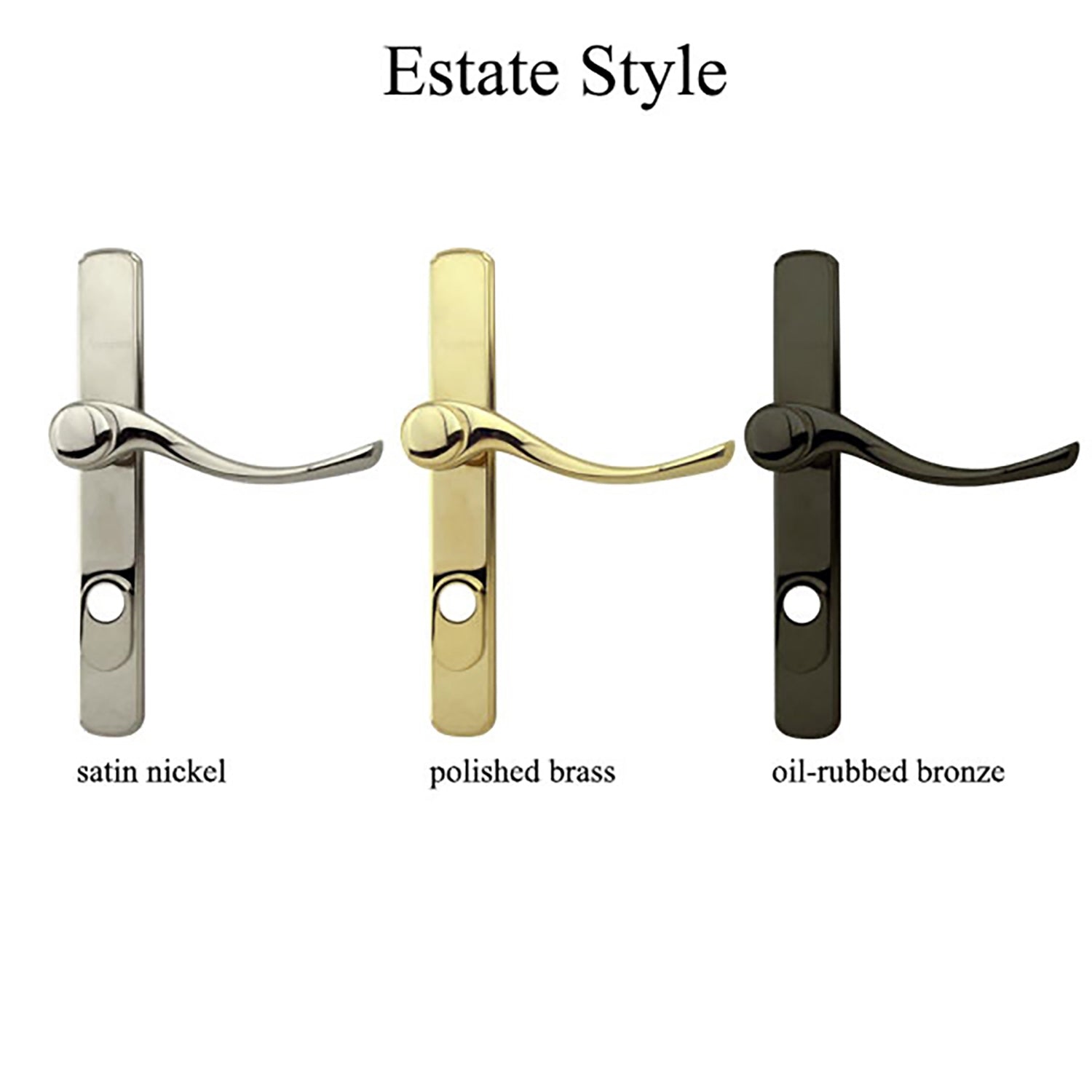

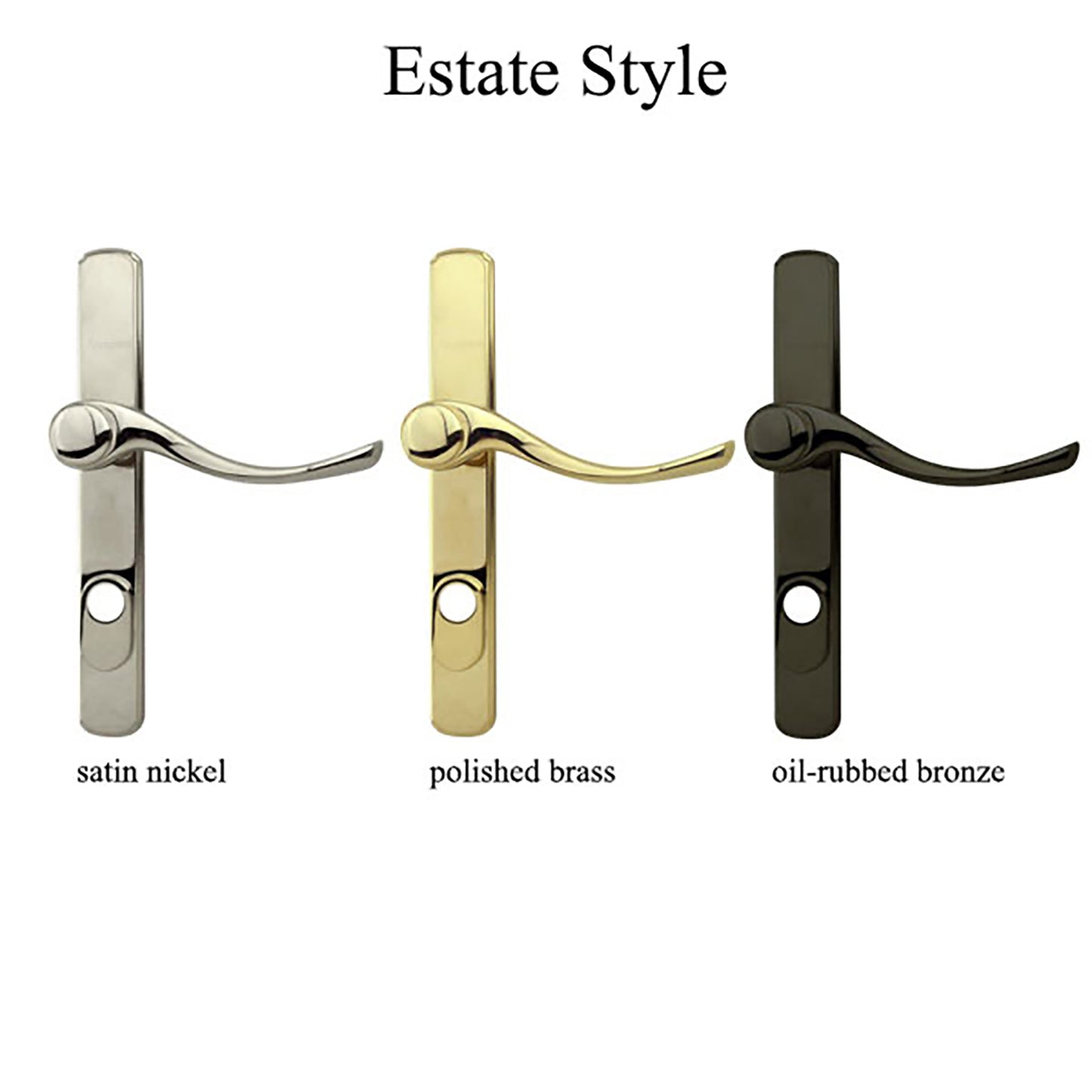

  • Available Colors: Lifetime Polished Brass, Oil Rubbed Bronze, and Lifetime Satin Nickel
  • Euro-Style Profile Cylinder: Off-Center
  • Cylinder Type: offset tail piece
  • Overall length: 2-1/8 (55mm)
  • Inside Measurement: 1-1/4 (32mm) to screw hole
  • Outside Measurement: 7/8 inch (22mm) to screw hole
  • Keyway: Schlage 5 pin, SC1 Rekeyable, 2 keys
  • Backset: 1 inch. Mortise lock body (standard is 7/8)
  • Trim plate mounting screw holes: spaced 6-11/16 Inch
  • Door Thickness: 1-1/2 inch
  • Handle Style: Estate
  • Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
  • Handle Spindle: 5/16 Square, 3-1/4 Length
  • SKU: 302048

Notes

  • Special 1 inch Backset with special Off center cylinder
  • Handle can be used on Andersen 3000 & 4000 Series storm doors with a mortise lock and/or multipoint lock.
  • Mortise Lock Measurements:
  • Backset is measured from edge of mortise lock to center of handle
  • PLEASE NOTE
  • This Lock will work only on doors with these measurements,
  • Style might be different than current lock.
  • Old Style had a round hole for outside plate. (discontinued)

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
