Andersen Multipoint Lock for A-Series Hinged Doors, 92-7/16", 2008-Present

Andersen Multipoint Lock for A-Series Hinged Doors, 92-7/16", 2008-Present

9014689

Key details

  • Fits A-Series applications when matched correctly
  • In stock and ready to ship
  • Authorized Andersen® parts · Ships from Kansas City

Not sure this fits?

Send a photo, part number, or measurements. A real person will help narrow it down.

Part Identifier Contact experts How To guides

Compatible with

A-Series Commercial Parts Door Parts Other Parts

Fit at a glance

  • Part type Andersen® replacement part
  • Typical use Used on Andersen® hinged doors or window sash hardware
  • Before you order Match the part number, series, or measurements on your existing hardware when possible.
  • Authorized Genuine Andersen®-focused replacement parts from Parts and Hardware
Details

Andersen Multipoint Lock for A-Series Hinged Doors, 92-7/16", 2008-Present (9014689)

Andersen Multipoint Lock for A-Series Hinged Doors, 92-7/16", 2008-Present.

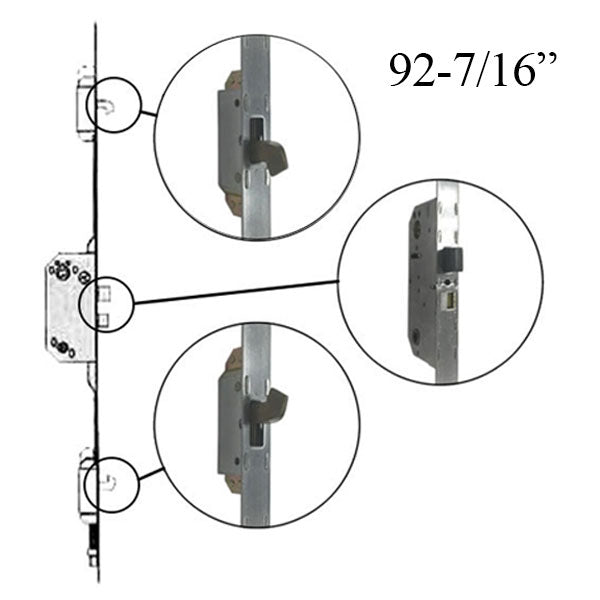

A-Series Hinged, Inswing & Outswing, Door Active Panel 3-Point Lock Mechanism 9014689.

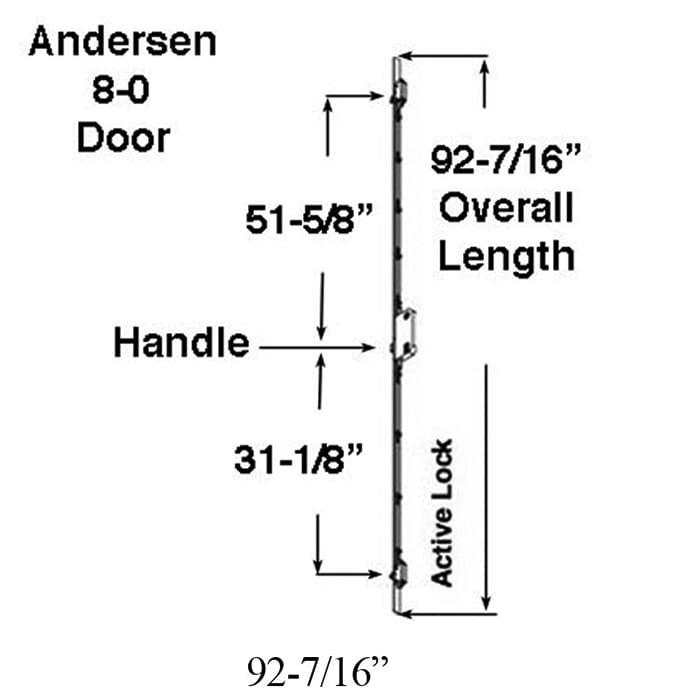

Technical Information

  • Overall Length: 92-7/16 Inches.
  • Faceplate Width: 7/8 Inch.
  • Backset: 2 inch
  • Center of Deadbolt to Center of Spring latch: 1-3/8 inch
  • Handle Height: 36 inch
  • Bottom Hook: 31-1/8 Inches (center of Handle to center of hook)
  • Top Hook: 51-1/2 inches (center of Handle to center of hook)
  • Center of both hooks: 82-5/8 inches
  • SKU: 9014689

Notes

  • Center of handle, to center of Lock: 4-3/16
  • Related Parts
  • 9014687 - FWHID68, Active Lock Mechanism 3 point
  • 9014688 - FWHID611, Active Lock Mechanism 3 point
  • 9014689 - FWHID80, Active Lock Mechanism 3 point
  • 2579777 - FWHID68, Passive Lock Mechanism, Shootbolts
  • 2579778 - FWHID611, Passive Lock Mechanism, Shootbolts
  • 2579779 - FWHID80, Passive Lock Mechanism, Shootbolts

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
