Andersen Frenchwood Hinged Door Lock Actuator - 2-1/4 door

Andersen Frenchwood Hinged Door Lock Actuator - 2-1/4 door

9050896

Key details

  • Fits Frenchwood applications when matched correctly
  • In stock and ready to ship
  • Authorized Andersen® parts · Ships from Kansas City

Not sure this fits?

Send a photo, part number, or measurements. A real person will help narrow it down.

Part Identifier Contact experts How To guides

Compatible with

Frenchwood Hinged Door Parts Hinged Door Miscellaneous Hardware

Fit at a glance

  • Part type Andersen® replacement part
  • Typical use Used on Andersen® hinged doors or window sash hardware
  • Before you order Match the part number, series, or measurements on your existing hardware when possible.
  • Authorized Genuine Andersen®-focused replacement parts from Parts and Hardware
Details

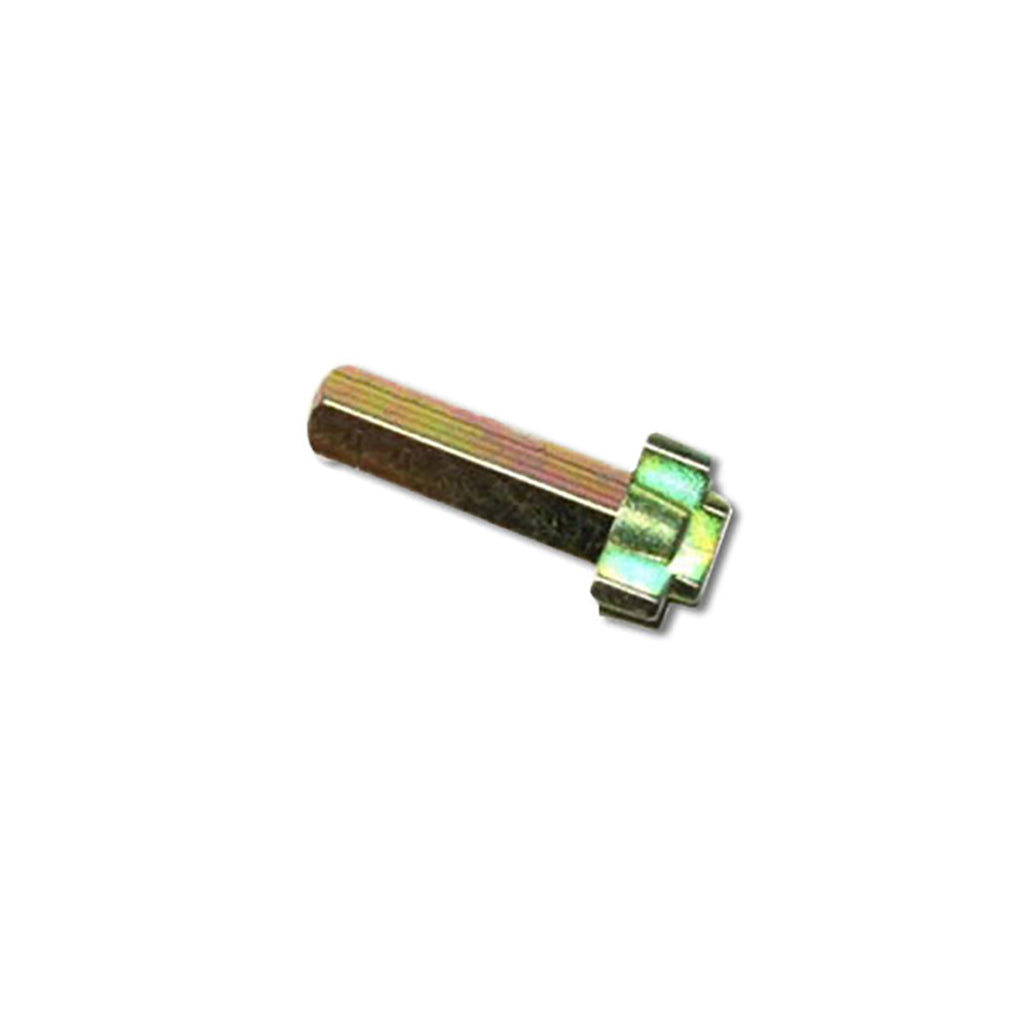

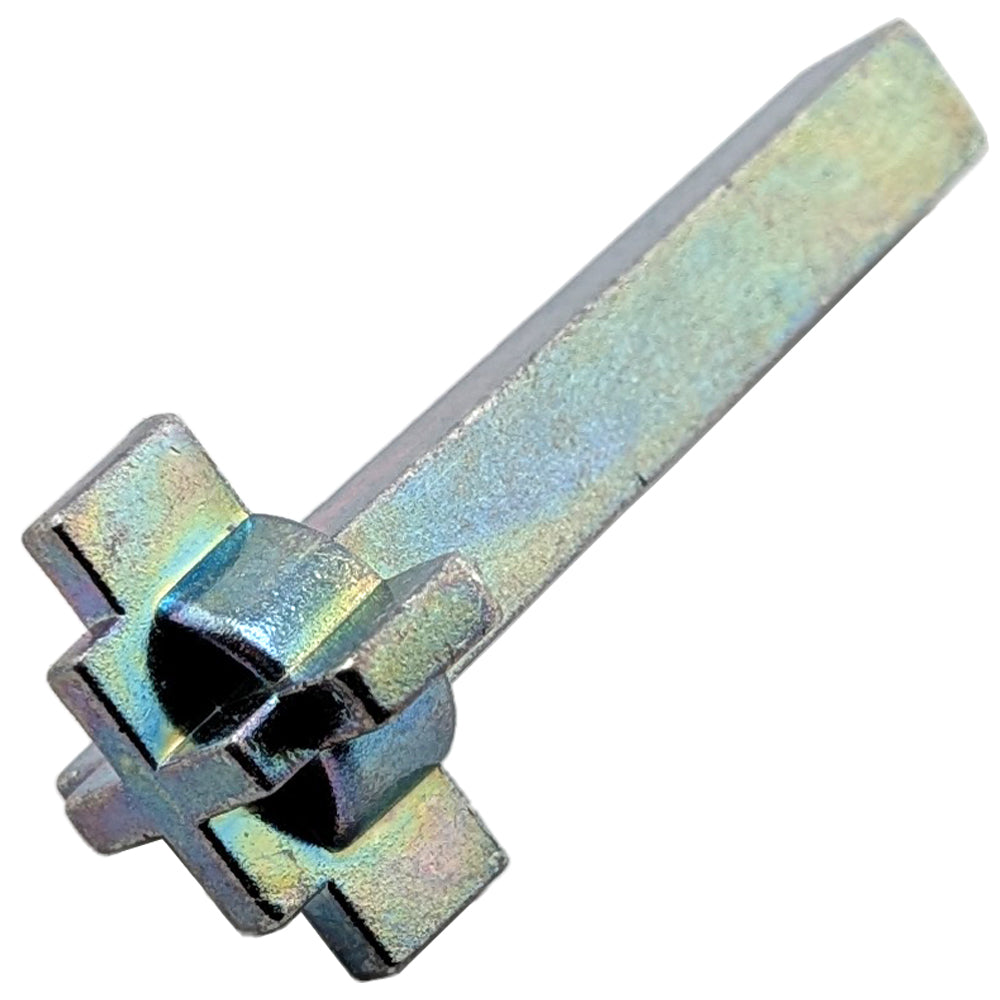

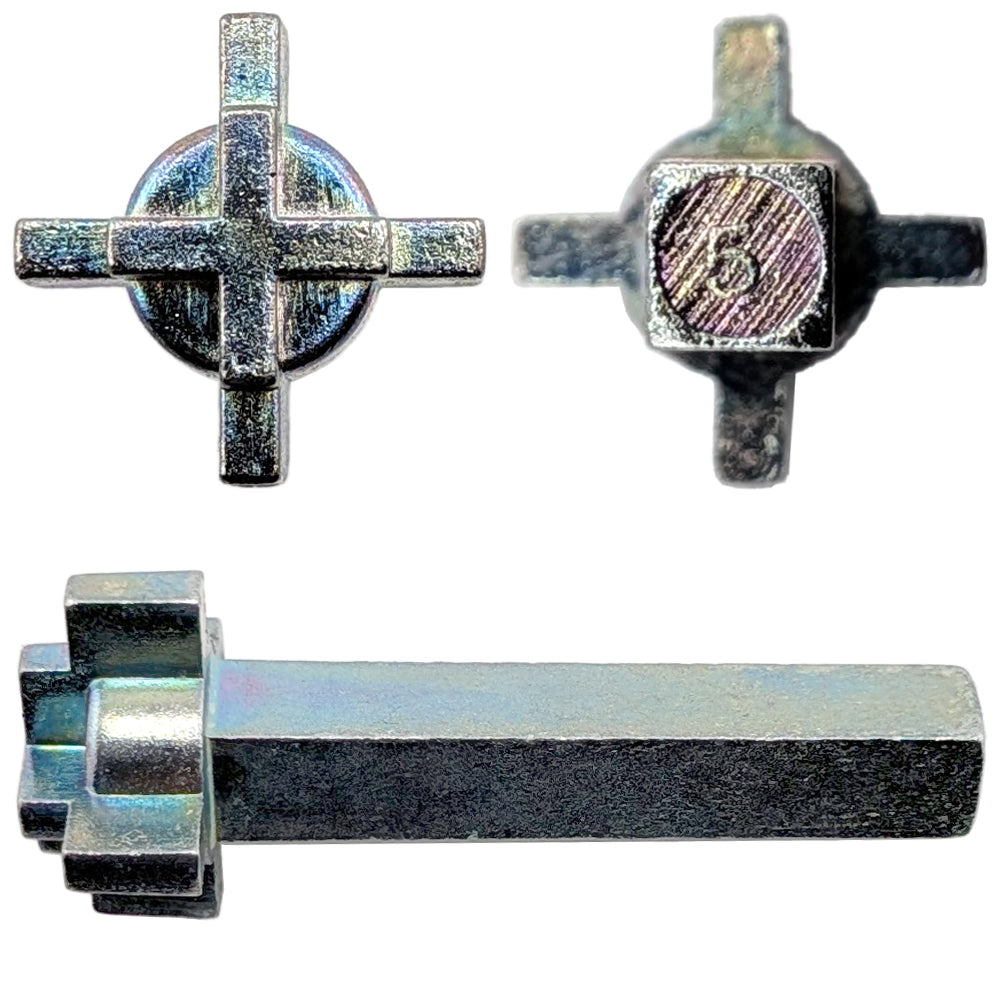

Andersen Frenchwood Hinged Door Lock Actuator - 2-1/4 door.

Andersen KML Hinged Door Lock Actuator for 2-1/4 inch thick door panel.

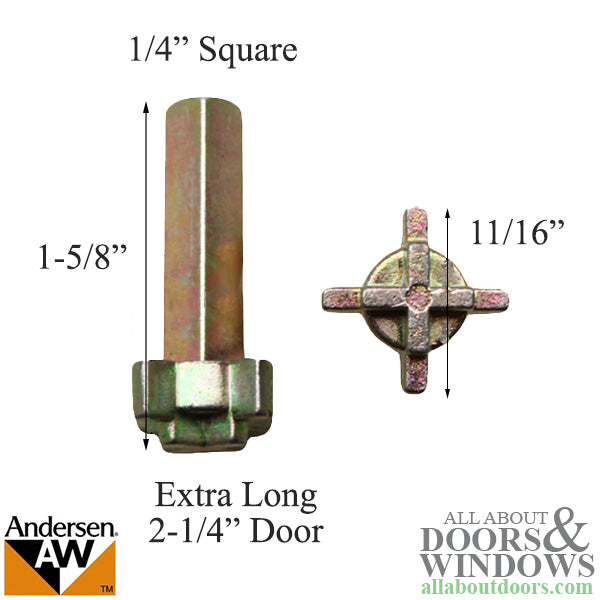

Technical Information

  • Length: 1-5/8 Inch
  • Spindle Diameter: 1/4 Inch
  • Width: 11/16 Inch
  • Door Thickness: 2-1/4 inch (57mm)
  • SKU: 9050896

Notes

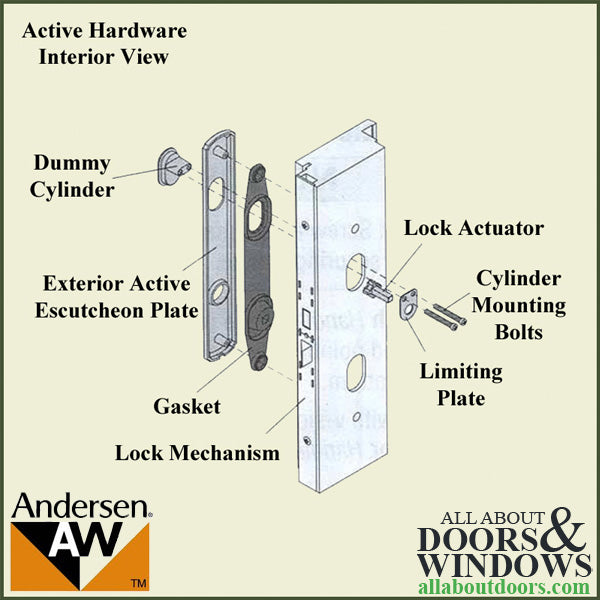

  • This lock actuator is located underneath the inside escutcheon plate. It is held into place with 2 screws and a limiting plate. When the dead bolt knob on the escutcheon plate is turned it rotates the actuator which locks the dead bolt.
  • The lock actuator is used on Andersen Frenchwood hinged and outswing patio doors. It is held in place with a limiting plate and two screws. This part activates the thumb turn lock. If the thumb turn spins this is likely the component needing to be replaced.

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
