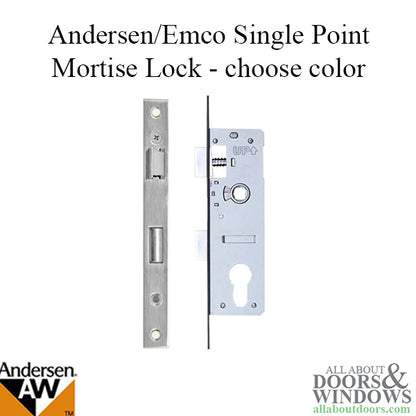

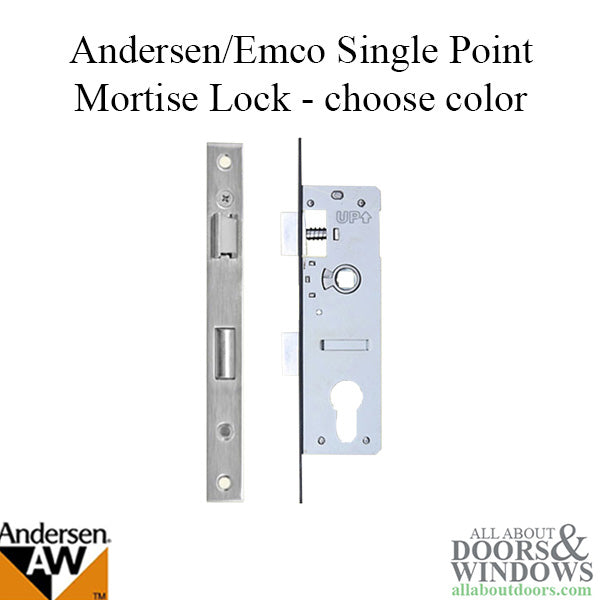

Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE

Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE

306200

Key details

  • Currently unavailable
  • Authorized Andersen® parts · Ships from Kansas City

Not sure this fits?

Send a photo, part number, or measurements. A real person will help narrow it down.

Part Identifier Contact experts How To guides

Compatible with

Storm Door Parts Emco Mortise Hardware & Parts

Fit at a glance

  • Part type Andersen® replacement part
  • Typical use Commonly used on Andersen® storm doors
  • Before you order Match the part number, series, or measurements on your existing hardware when possible.
  • Authorized Genuine Andersen®-focused replacement parts from Parts and Hardware

Details

Andersen / Emco Single Point Mortise Lock - NOT AVAILABLE.

This part has been discontinued and can be replaced with 302047 (uses the same mortise lock that this set did).

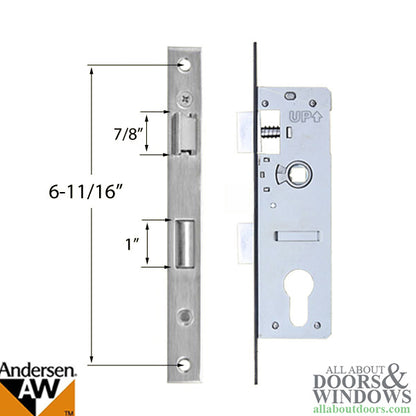

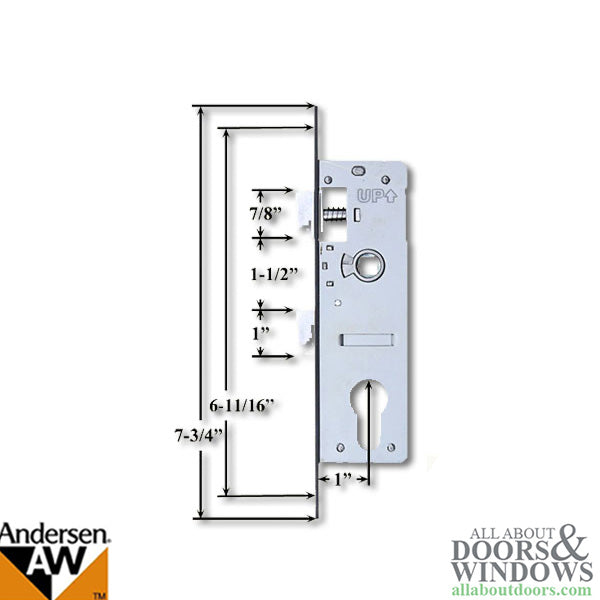

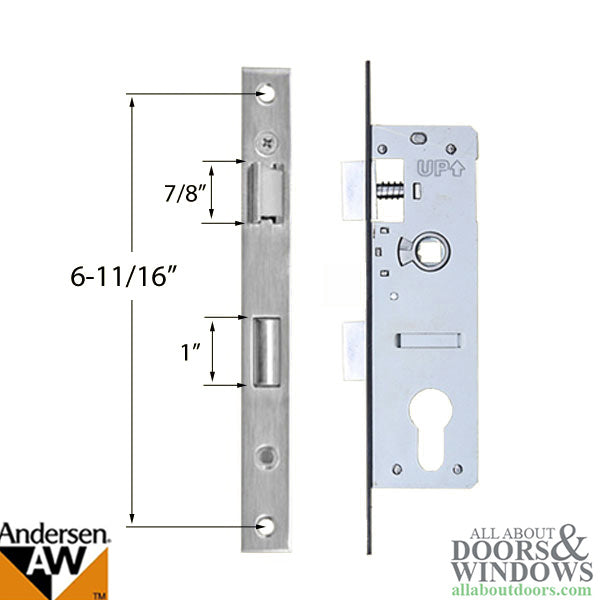

Technical Information

  • Was available in 3 colors: Polished Brass, Brushed/Satin Nickel and Oil Rubbed Bronze
  • Backset: 1 inch. Mortise lock body (standard is 7/8")
  • Mounting screw holes: spaced 6-11/16 Inch
  • Faceplate Length: 7-3/4"
  • Faceplate Width: 7/8" (20mm)
  • Door Thickness: 1-1/4" to 1-1/2"
  • SKU: 306200

Notes

  • Mortise Lock Measurements:
  • Backset is measured from edge of mortise lock to center of handle
  • Kit Includes:
  • 1 single point mortise lock
  • installation screws and/or bolts
  • NOTE:
  • This mortise lock will only work on doors with the above measurements.
  • To purchase this Mortise Lock as a complete kit, see here.

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
