Andersen Albany Active / Passive Double Hinged Door Hardware

Andersen Albany Active / Passive Double Hinged Door Hardware (9007551)

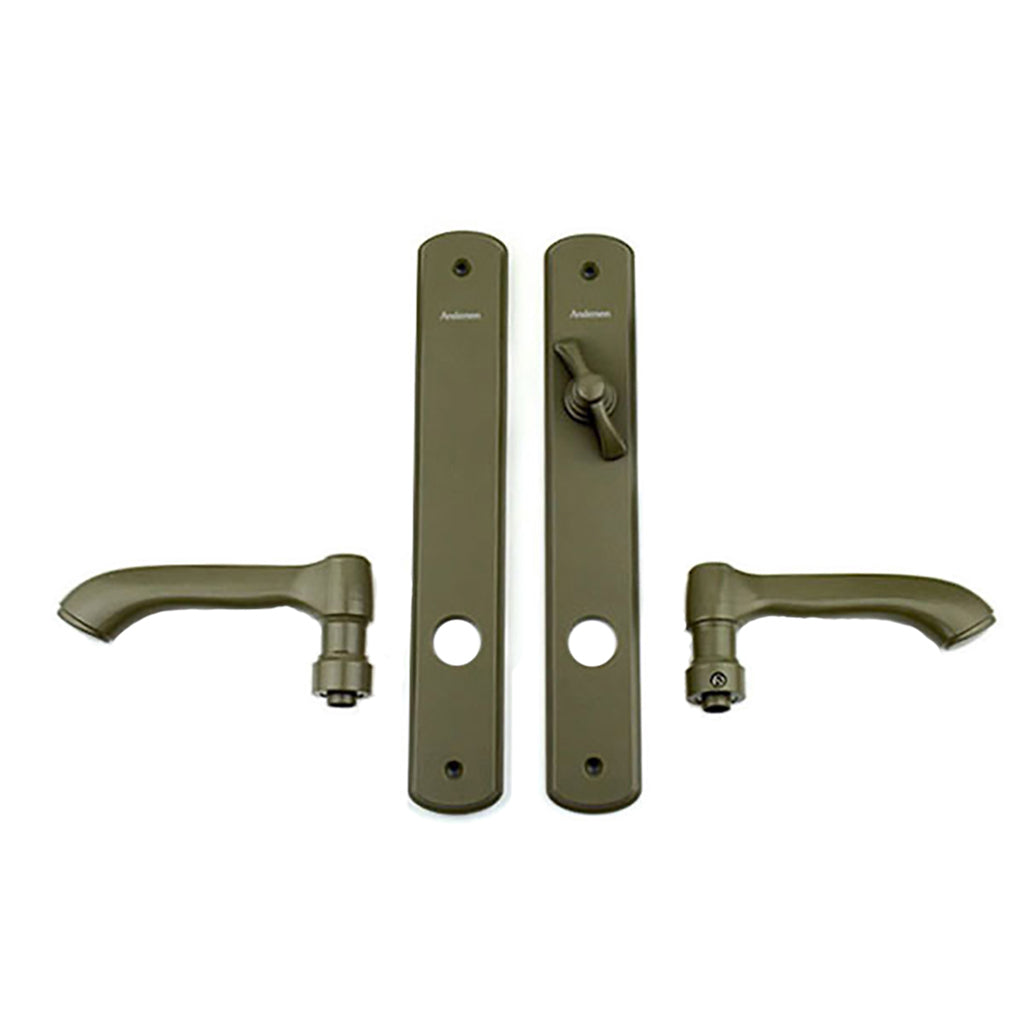

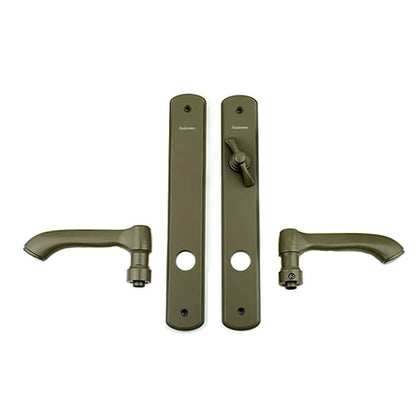

Andersen Albany Active / Passive Double Hinged Door Hardware Set - Stone.

Andersen Albany Style (Double Active / Passive) Hinged Door Hardware Set - Stone.

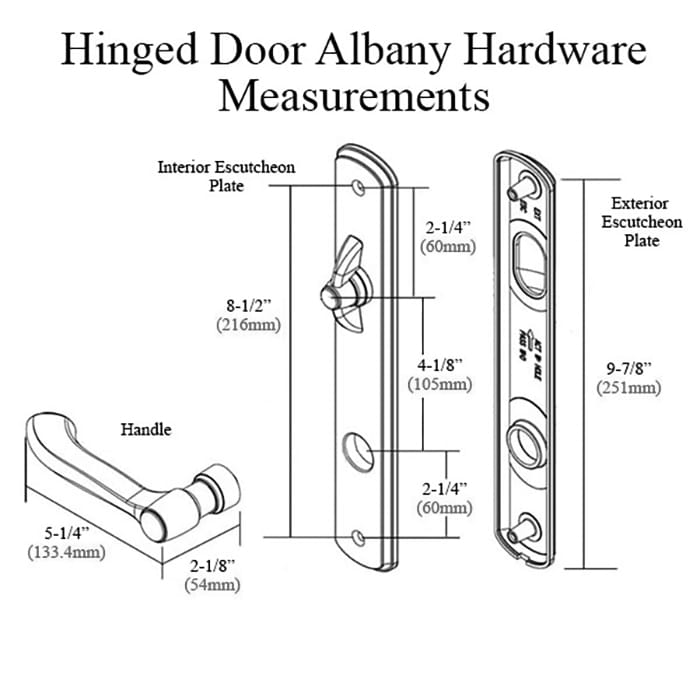

Technical Information

• Neck: 2-1/8 inch - 54 mm
• Length: 5-1/4 inch - 133.4 mm
• Top screw hole to Bottom screw hole: 8-1/2 inch - 216 mm
• Top screw hole to Thumbturn: 2-1/4 inch - 60 mm
• Thumb turn to Handle: 4-1/8 inch - 105 mm
• Handle to Bottom screw: 2-1/4 inch - 60 mm
• SKU: 9007551

Notes

• Length - 9-7/8 inch - 251 mm
• Center of Handle to center of Thumbturn (PZ): 4-1/8 inch - 105 mm

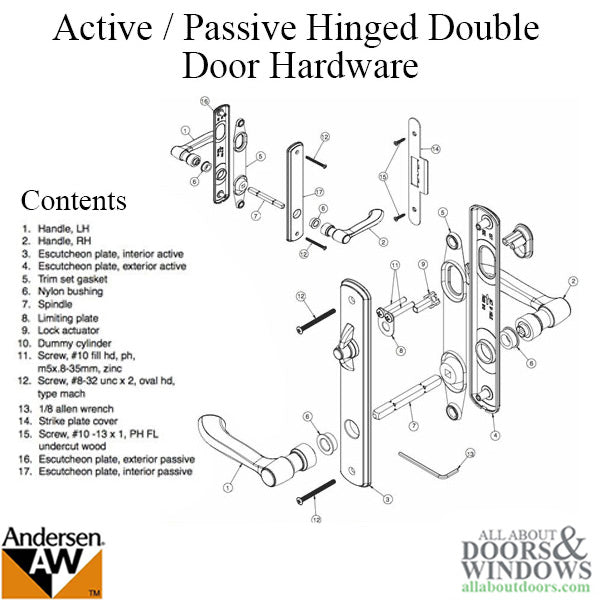

• Related Andersen hardware: 9007546 - Albany Active Single Hinged Door Hardware - White; 9007547 - Albany Active Single Hinged Door Hardware - Stone; 9007548 - Albany Active Single Hinged Door Hardware - Gold Dust; 9007549 - Albany Active Single Hinged Door Hardware - Black; 9007550 - Albany Active Style Double Hinged Door Hardware - White; 9007552 - Albany Active Style Double Hinged Door Hardware - Gold Dust; 9007553 - Albany Active Style Double Hinged Door Hardware - Black; Contents:; Complete hardware trim set includes inside and outside handles, inside and outside escutcheon plates, inside thumb latch lock, mounting studs, mounting bolts, gasket, spindle, set screws, bushings and installation instructions.; Note:; Exterior Keyed Lock 9007621 is sold separately. (Lock/unlock door from outside with a key); How to Replace a Dummy Cylinder in an Andersen Handle Set with a Keyed Cylinder

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
