Andersen 2000 Series Storm Door Hardware, Classical Design,

Andersen 2000 Series Storm Door Hardware, Classical Design,

306005-BSN

Key details

  • Finish: Brushed Satin Nickel
  • In stock and ready to ship
  • Authorized Andersen® parts · Ships from Kansas City

Not sure this fits?

Send a photo, part number, or measurements. A real person will help narrow it down.

Part Identifier Contact experts How To guides

Fit at a glance

  • Part type Andersen® replacement part
  • Typical use Commonly used on Andersen® storm doors
  • Before you order Match the part number, series, or measurements on your existing hardware when possible.
  • Authorized Genuine Andersen®-focused replacement parts from Parts and Hardware
Details

Andersen 2000 Series Storm Door Hardware, Classical Design, (306005)

Andersen 2000 Series Storm Door Hardware, Classical Design, Choose Color.

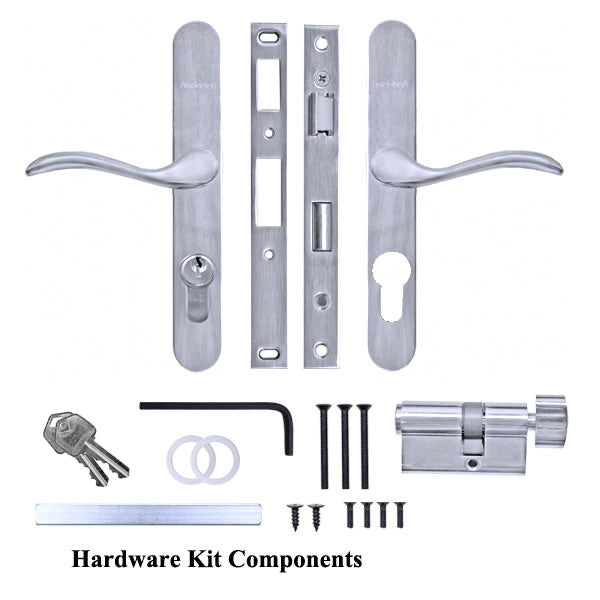

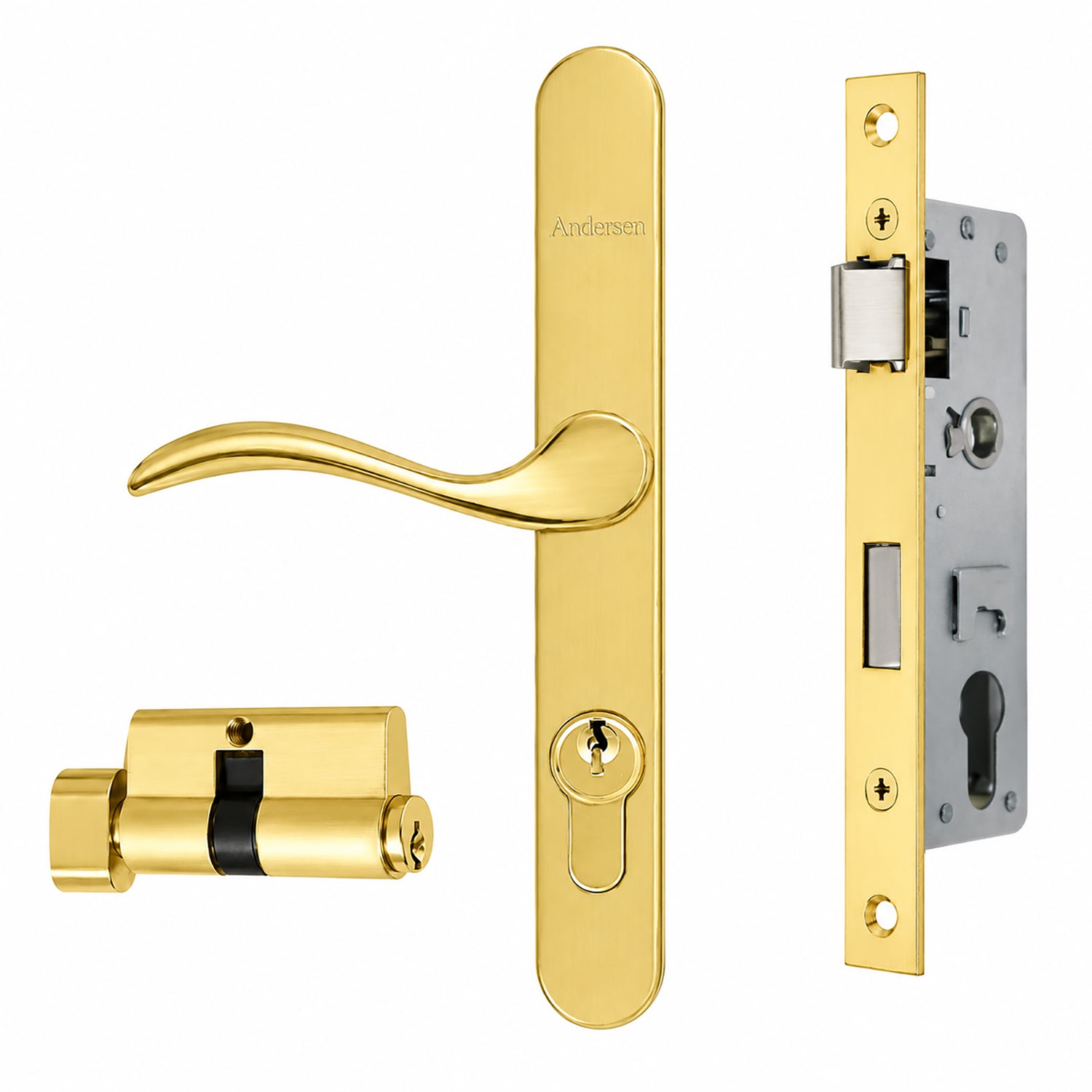

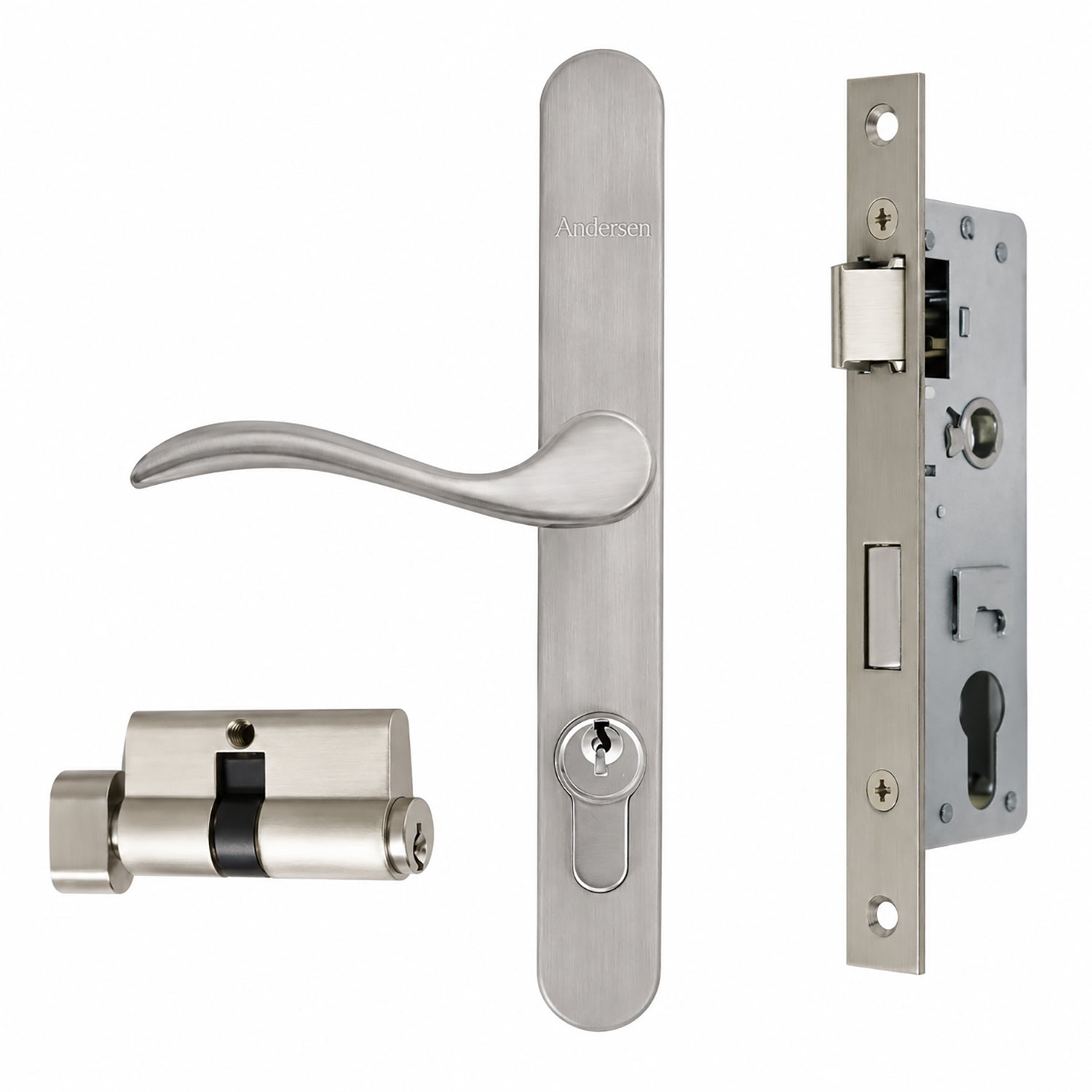

Andersen Classic Storm Door Handleset with 1 inch backset Mortise Lock and off center cylinder.

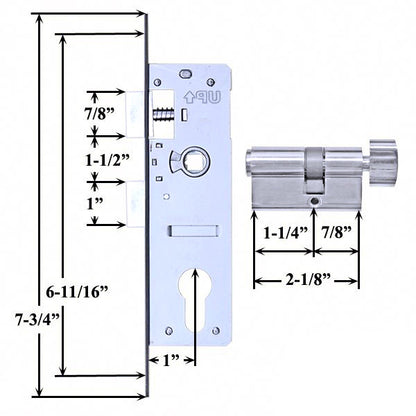

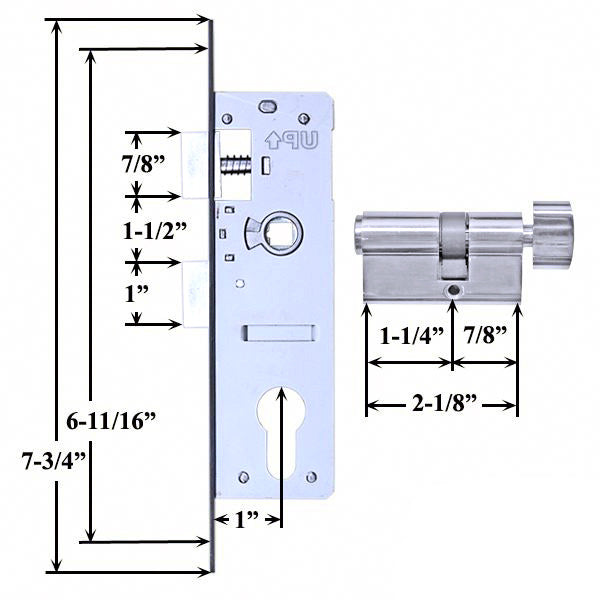

Technical Information

  • Euro-Style Profile cylinder: off-center installation screw
  • Cylinder Type: Euro Profile
  • Lock Backset: 1 inch. Mortise lock body (standard is 7/8 inch)
  • Trim plate mounting screw holes: spaced 6-11/16 inch
  • Door Thickness: 1-1/4 inch
  • Overall Cylinder Length: 2-1/8 inch (55mm)
  • Key Cylinder Inside Measurement: 1-1/4 inch (32mm) to screw hole
  • Key Cylinder Outside Measurement: 7/8 inch (22mm)
  • Keyway: Kwikset, 5 pin, KW1
  • Handle Style: Classic
  • Handle Diameter Hole: 9/16 inch (standard 5/8)
  • Handle Spindle: 5/16 inch square, 3-1/4 inch length
  • Color / Finish: Satin Nickel, Polished Brass
  • SKU: 306005

Notes

  • Measurements:
  • Optional Schlage Cylinder # 302055
  • SPECIAL NOTE ABOUT SCRATCHES:
  • These Peachtree Handle Sets are shipped in clear blister pack which can put minor rub marks on the surface.
  • Some shipping carriers do not handle packages with care, Minor scratches or blemishes that occur in shipping are not defects.
  • PLEASE NOTE - This Lock will work only on doors with these measurements,
  • Style might be different than current lock.
  • Old Style had a round hole for outside plate. (discontinued)

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
