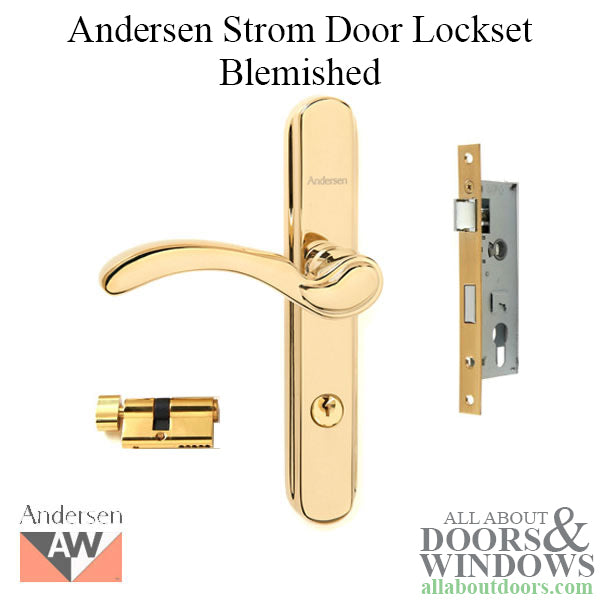

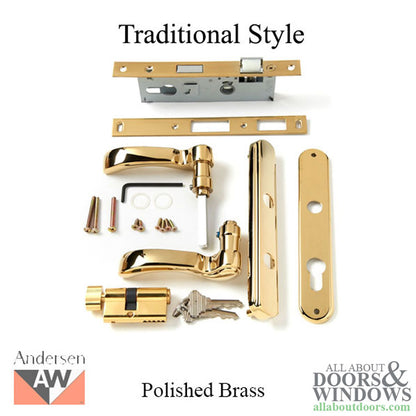

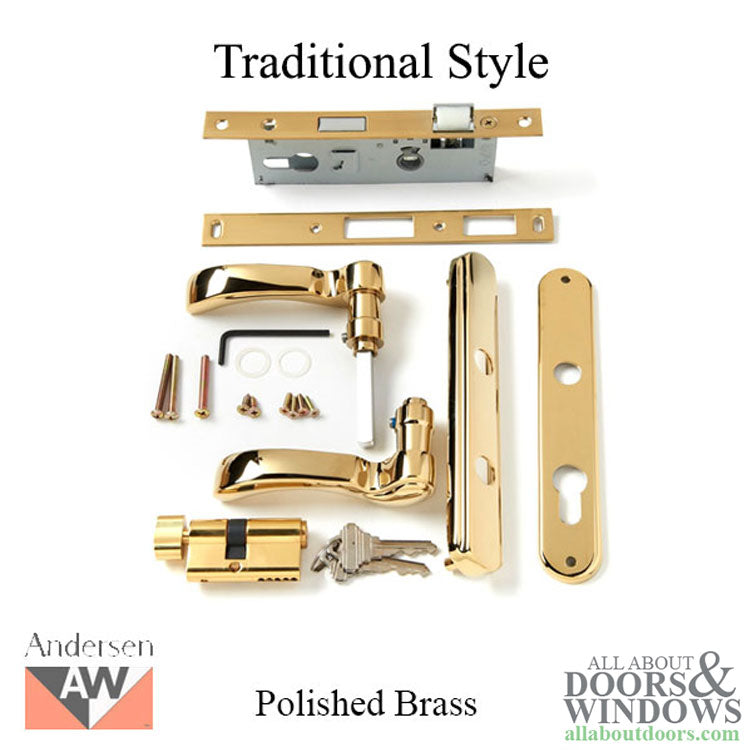

Blemished Andersen Traditional Storm Door Hardware - Polished Brass

Blemished Andersen Traditional Storm Door Hardware - Polished Brass (302045-PB-BLEM)

Blemished Andersen Traditional Storm Door Hardware - Polished Brass.

This item has been used and levers as well as lock strike plate are visibly scratched.

Technical Information

• Euro-Style Profile Cylinder: Off-Center
• Cylinder Type: offset tail piece
• Overall length: 2-1/8 (55mm)
• Inside Measurement: 1-1/4 (32mm) to screw hole
• Outside Measurement: 7/8 inch (22mm) to screw hole
• Keyway: Kwikset 5 pin, KW1 Rekeyable, 2 keys
• Backset: 1 inch. Mortise lock body (standard is 7/8)
• Trim plate mounting screw holes: spaced 6-11/16 Inch
• Door Thickness: 1-1/2 inch
• Handle Style: Traditional
• Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
• Handle Spindle: 5/16 Square, 3-1/4 Length
• Color / Finish: Brushed/Satin Nickel, Polished Brass or Oil Rubbed Bronze
• SKU: 302045-PB-BLEM

Notes

• Sold as is. No returns, refunds or exchanges on blemished items.
• Mortise Lock Measurements:
• Backset is measured from edge of mortise lock to center of handle
• PLEASE NOTE
• This Lock will work only on doors with these measurements,
• Style might be different than current lock. Old Style had a round hole for outside plate. (discontinued)
• To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
• *Due to manufacturer packaging, small imperfections may be seen on levers. Can not be returned due to these imperfections.

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
