Blemished Andersen Traditional Storm Door Hardware - Brushed Satin Nickle

Blemished Andersen Traditional Storm Door Hardware - Brushed Satin Nickle

302045-BLEM

Key details

  • Currently unavailable
  • Authorized Andersen® parts · Ships from Kansas City

Not sure this fits?

Send a photo, part number, or measurements. A real person will help narrow it down.

Part Identifier Contact experts How To guides

Compatible with

empty

Fit at a glance

  • Part type Andersen® replacement part
  • Typical use Commonly used on Andersen® storm doors
  • Before you order Match the part number, series, or measurements on your existing hardware when possible.
  • Authorized Genuine Andersen®-focused replacement parts from Parts and Hardware
Details

Blemished Andersen Traditional Storm Door Hardware - Brushed Satin Nickle (302045-BLEM)

Blemished Andersen Traditional Storm Door Hardware - Brushed Satin Nickle.

Special 1 inch Backset with special Off center cylinder.

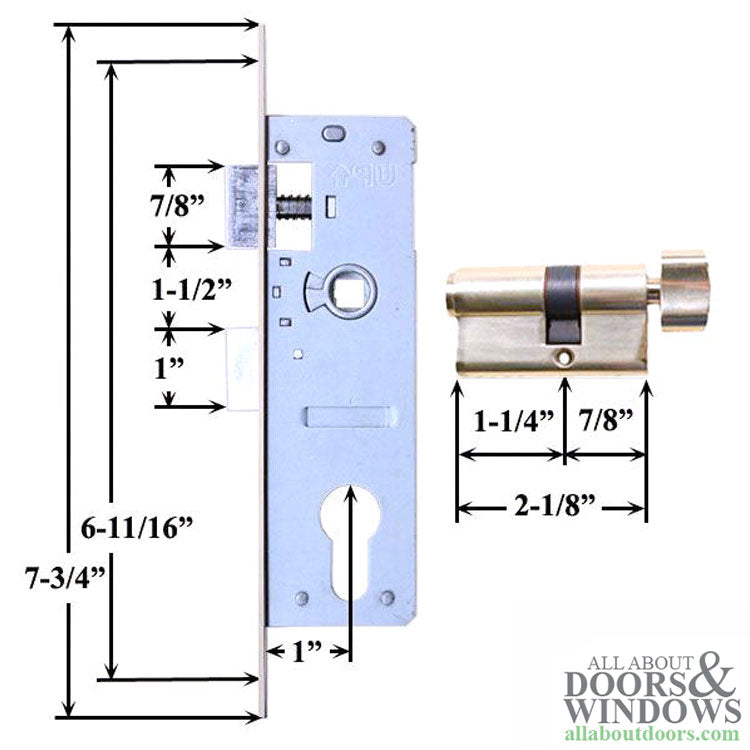

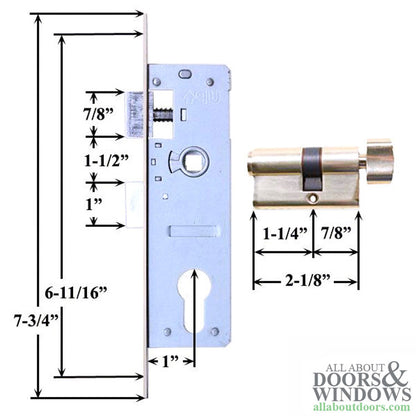

Technical Information

  • Euro-Style Profile Cylinder: Off-Center
  • Cylinder Type: offset tail piece
  • Overall length: 2-1/8 (55mm)
  • Inside Measurement: 1-1/4 (32mm) to screw hole
  • Outside Measurement: 7/8 inch (22mm) to screw hole
  • Keyway: Kwikset 5 pin, KW1 Rekeyable, 2 keys
  • Backset: 1 inch. Mortise lock body (standard is 7/8)
  • Trim plate mounting screw holes: spaced 6-11/16 Inch
  • Door Thickness: 1-1/2 inch
  • Handle Style: Traditional
  • Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
  • Handle Spindle: 5/16 Square, 3-1/4 Length
  • Color / Finish: Brushed/Satin Nickel, Polished Brass or Oil Rubbed Bronze
  • SKU: 302045-BLEM

Notes

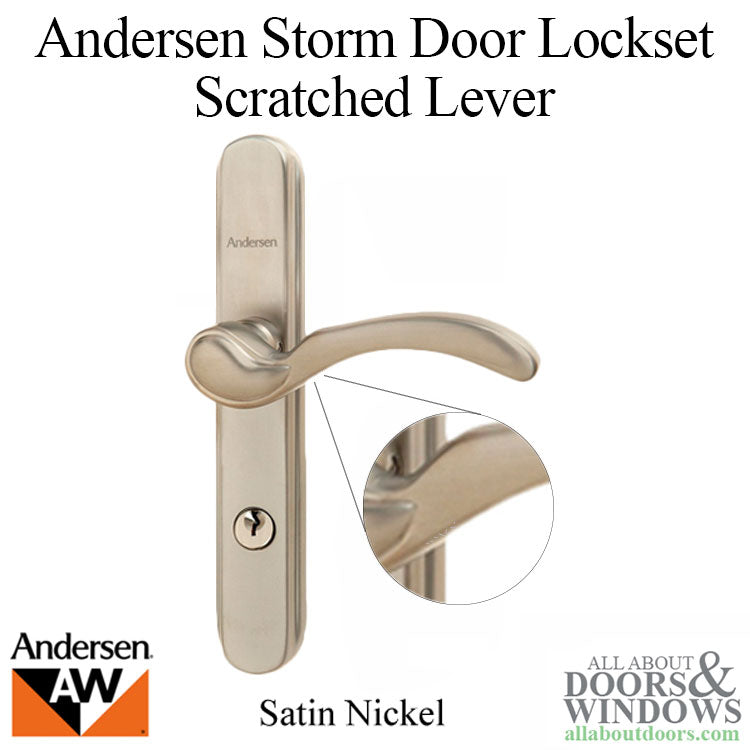

  • This item has small imperfections on both levers and is priced accordingly.
  • Mortise Lock Measurements:
  • Backset is measured from edge of mortise lock to center of handle
  • PLEASE NOTE
  • This Lock will work only on doors with these measurements,
  • Style might be different than current lock. Old Style had a round hole for outside plate. (discontinued)
  • To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.
  • *Due to manufacturer packaging, small imperfections may be seen on levers. Can not be returned due to these imperfections.

Not sure this is the exact part? Use our Part Identifier or contact Parts and Hardware so we can confirm fit before you order.
